Product Overview

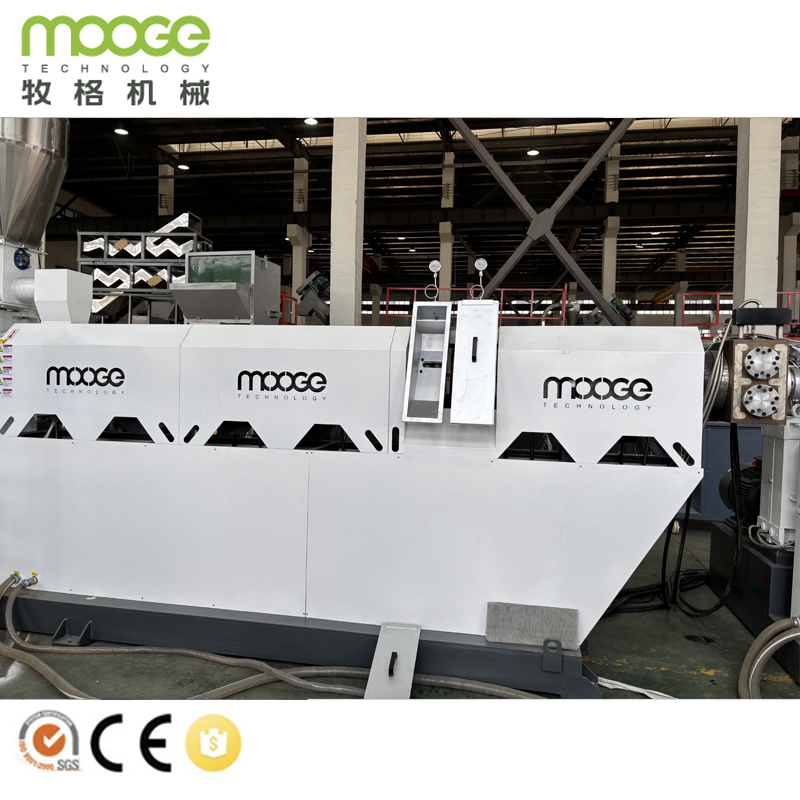

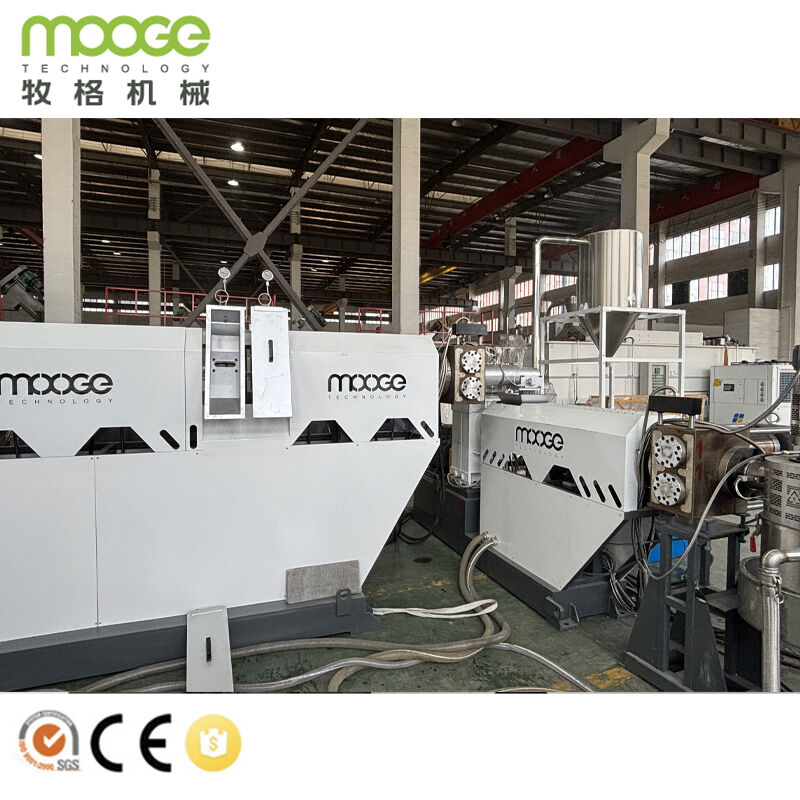

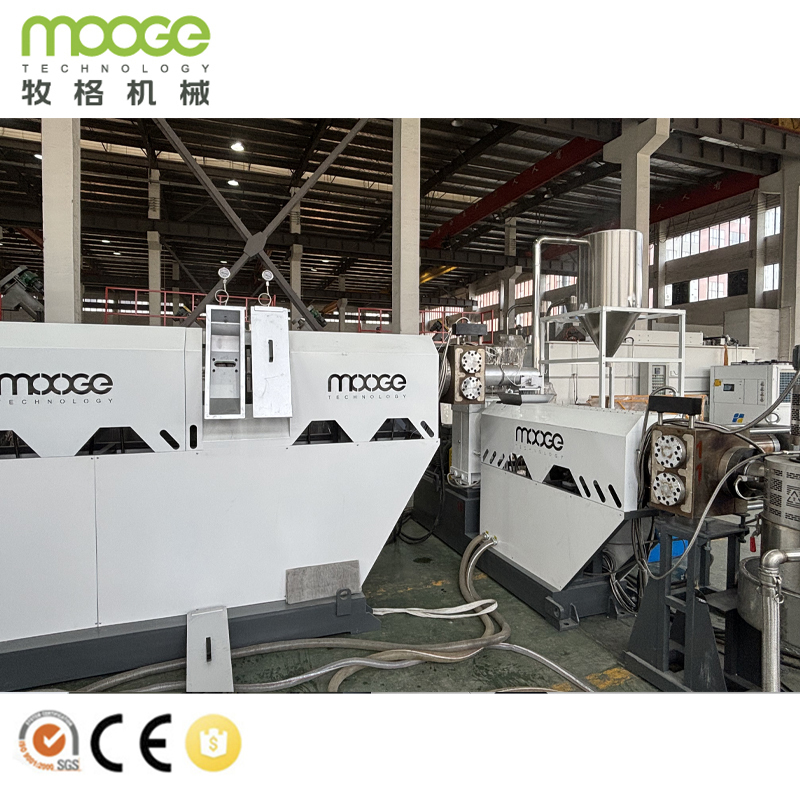

Rigid Plastic Two Stage Water Ring Pelletizing Line
Rigid Plastic Two Stage Water Ring Pelletizing Line is designed for recycling PP, PE, HDPE, LDPE and other rigid plastic waste, such as crushed plastic flakes, bottle flakes, barrel flakes, injection scraps and hard plastic materials.
The double-stage extrusion system provides better melting, plasticizing, degassing and filtration performance. The water ring pelletizing system can produce uniform recycled plastic pellets with stable cutting performance. The final pellets can be used for extrusion, injection molding, blow molding and other plastic production.
Machine capacity, voltage, screw design, pelletizing system and layout can be customized according to customer raw material condition and production requirements.
Specification
Applications
PP PE Rigid Plastic Two Stage Water Ring Pelletizing Line is widely used for recycling and pelletizing PP, PE, HDPE, LDPE and other rigid plastic waste. It is suitable for processing crushed plastic flakes, bottle flakes, barrel flakes, plastic container flakes, injection scraps, blow molding waste, pipe scraps, sheet scraps and other hard plastic materials.
The final recycled plastic pellets can be used for injection molding, blow molding, pipe extrusion, sheet extrusion, profile extrusion, plastic container production, plastic barrel production, recycled plastic product manufacturing and further plastic processing.
This pelletizing line is suitable for plastic recycling plants, plastic pelletizing factories, injection molding factories, blow molding factories, plastic product manufacturers, waste plastic collection centers and recycled plastic material suppliers.
Technical Specifications
|
Model
|
Screw Diameter
|
Screw L/D
|
Main Motor Power
|
Capacity Kg/hr
|
|
YSS-SJ85
|
85mm
|
25-33:1
|
37KW
|
100-150
|
|
YSS-SJ100
|
100mm
|
25-33:1
|
55KW
|
150-200
|
|
YSS-SJ120
|
120mm
|
25-33:1
|
75KW
|
250-300
|
|
YSS-SJ150
|
150mm
|
25-33:1
|
90KW
|
300-400
|
|
YSS-SJ150
|
150mm
|
25-33:1
|
110KW
|
400-500
|
|
YSS-SJ160
|
160mm
|
25-33:1
|
132KW
|
500-600
|
|
YSS-SJ180
|
180mm
|
25-33:1
|
160KW
|
600-800
|
|
YSS-SJ200
|
200mm
|
25-33:1
|
200KW
|
800-1000
|

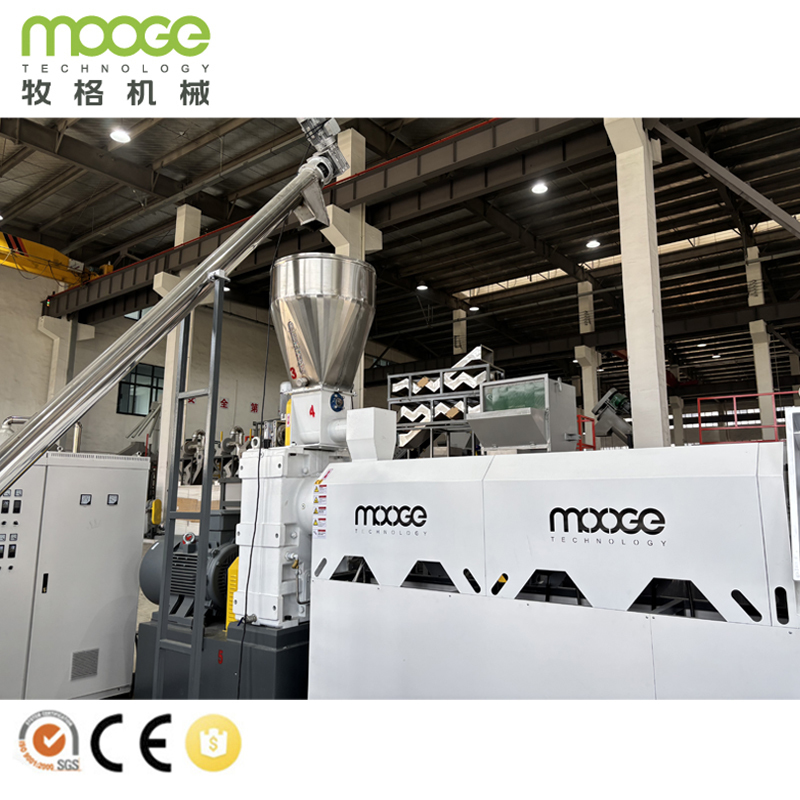

Screw loader and Dosing Feeder
Use to loading flakes into dosing feedingDosing feeding the material into exturder
Keep the exturder more stable working
Single Screw Extruder
The single screw extruder is built with a strong and heavy-duty frame to ensure stable operation without vibration during machine running. The complete frame, where the gearbox, motor and screw system are installed, is precisely milled to improve installation accuracy and machine stability. The frame is made of square steel tubes with thick steel plates on the top, providing high strength, durability and long service life.

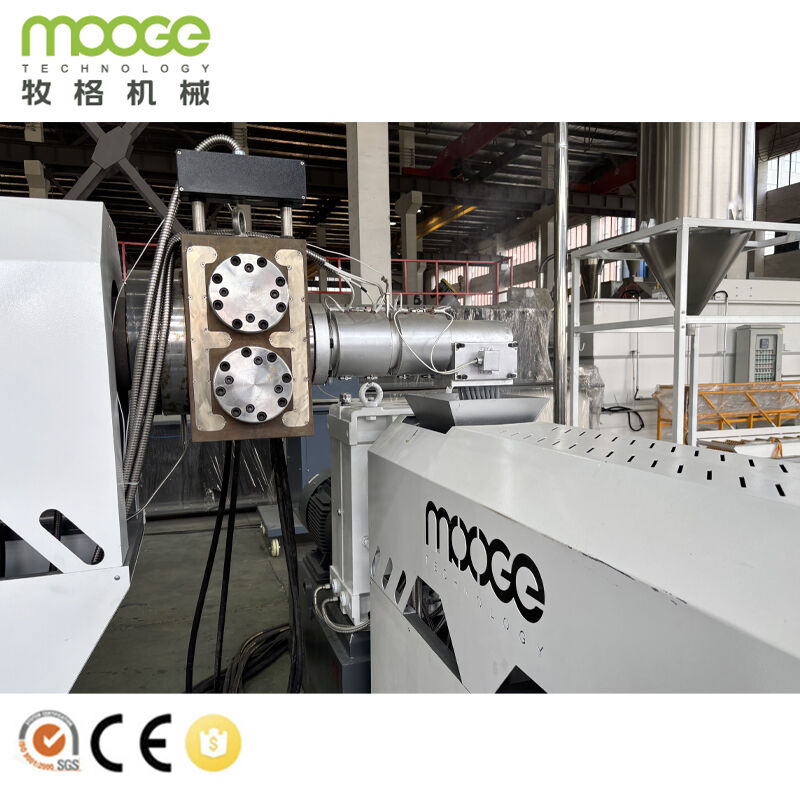

Hydraulic Screen Changer
Function: Filtering material impurity
Double position single board model
Die face Cutting And Water Cooling Tank
Cutting melted plastic directly at the die face and cooling the pellets by circulating water to produce uniform recycled plastic pellets.
Company Profile
Customized Solution
We can provide customized recycling solutions according to different customer requirements.
To recommend a suitable solution, please tell us:
- What material do you want to recycle?
- What is the material size?
- Is the material clean or dirty?
- What capacity do you need per hour?
- What is your final product requirement?
- Do you need a complete washing line or single machine?
According to your information, we can design a suitable process flow and machine configuration.
Why Choose Us
- Complete plastic recycling solution
- Customized machine configuration
- Practical process design
- Stable machine performance
- Suitable for different plastic materials
- Factory layout support
- Installation and operation guidance
- Timely after-sales service
Our company is one of the national high-tech enterprises, we have obtained many national invention patents, and has our registered
trademark and also the CE, SGS, ISO certification for our plastic recycling machines.
Contact Us
If you are interested in this plastic recycling washing line, please contact us.
Please send us your raw material photos, required capacity and final product requirement.
We will recommend a suitable machine configuration and quotation for you.
Contact us now to get a customized plastic recycling solution.
